Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V

Product Categories

Hunan Machine Home Information Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V
Brand: Zoomlion
Price: 1 USD

Brand Name : Zoomlion

Model Number : ZLJ5302JQZ25V

Certification : CE, ISO7501

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 5-7 Days

Packaging Details : Bulk

Status : Used

Max. Lifting Height : 11 - 47m

Max. Lifting Weight : 25ton

Axle No. : 3

Jib boom : 2 Section

Production date : 2016

Contact Now

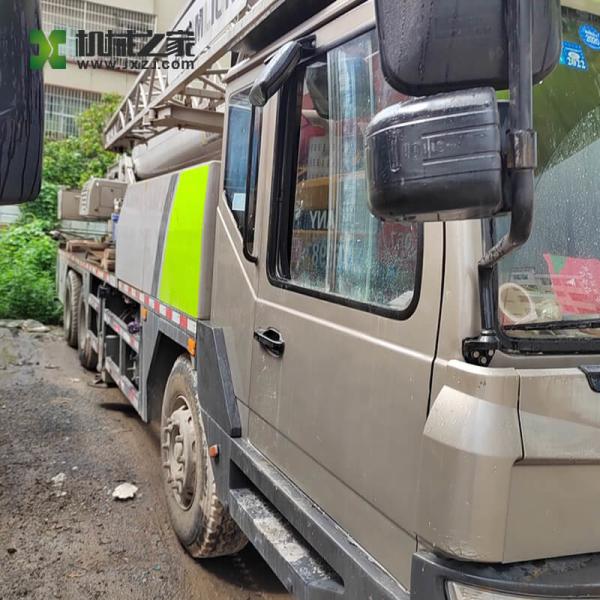

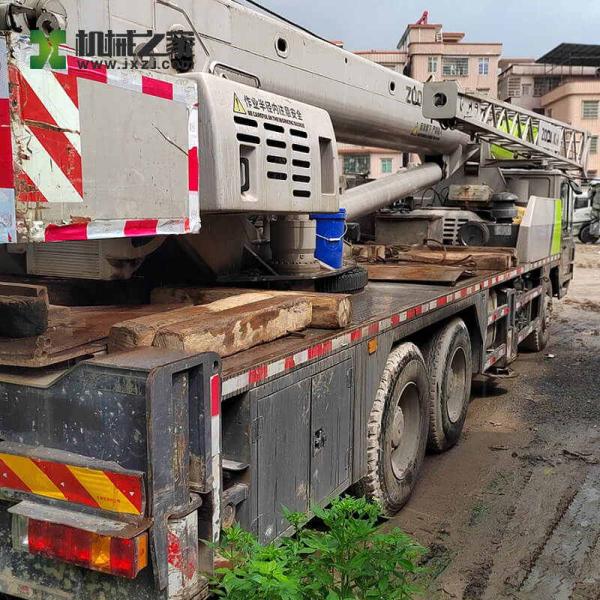

Used Zoomlion Truck Crane Zoomlion ZLJ5302JQZ25V Second Hand Truck Mobile Crane

Production Details:

Model NO.	ZLJ5302JQZ25V	Boom Type	Telescopic
Max. Rated Lifting Capacity	25000 kg	Max. Lifting Height of Jib	39m
Max Gradeability	37%	Working Diameter	23m
Transport Package	Complies with Min. export packaging requirements	Specification	12700×2500×3450mm
Driving mileage	38381.4Km	Working hours	12088.5h
Trademark	Zoomlion	Place of Origin	China
HS Code		Supply Capacity	10 Units Per Month

Full-slewing, telescopic boom type, hydraulic proportional control five-section boom truck crane.
Its chassis adopts the company's own full drive three axles special chassis, discharged from Guochuan, also has a wide field of vision.
Ensure that the working ability of each actuator can be fully utilized, to preventing the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe,
Uses the newest hydraulic proportional reversing valve with load feedback and quadruple gear pump system. Equipped with relief valve, balance valve, hydraulic lock, brake valve and other safety devices.
Equipped with a variety of safety devices, including torque limiters and a complete lighting system, that can ensure the safety and reliability of the work, also facilitate night work.
Exhaust emissions comply with Euro III, its safety devices meet the requirements of CCC certification.

Product Parameters:

Item			Value	Remark
Working performance	Max. rated gross lifting capacity (kg)		25000
	Max. load moment of the basic boom (kN.m)		980
	Max. load moment of the longest main boom (kN.m)		494
	Max. lifting height of the basic boom (m)		11.0
	Max. lifting height of main boom (m)		39	Boom deformation is not considered
	Max. lifting height of jib (m)		47.0
Working Speeds	Max. speed of single rope (main winch) (m/min)		120	At fourth layer
	Max. speed of single rope (auxiliary winch) (m/min)		170	At second layer
	Boom derricking up time (s)		40
	Boom telescoping out time (s)		80
	Max. slewing speed (r/min)		0～2.2
Traveling parameters	Max. travel speed (km/h)		78
	Max. gradeability (%)		37
	Min. turning diameter (m)		22
	Min. ground clearance (mm)		220
	Limits for exhaust pollutants and smoke		Conform to related standards	GB3847-2005 GB17691-2005 Phase III
	Oil consumption per 100 km (L)		45
Weights	Deadweight in traveling condition (kg)		31700
	Complete vehicle kerb mass (kg)		31570
	Front axle load (kg)		6900
	Rear axle axle load (kg)		24800
Dimensions	Dimensions (L×W×H) (mm)		12700x2500x3450
	Longitudinal distance of outriggers (m)		5.36
	Outrigger lateral distance (m)		6.1
	Main arm length (m)		10.4~39.2
	Main boom elevation angle (°)		-2～80
	Jib length (m)		8
	Jib Mounting Angle (°)		0 , 30
Chassis	model		zlj5325
	Type		Class II
	Engine	Model	WP10.375N
		Rated power (kW/r/min)	199/2200
		Max. output torque (N.m/r/min)	1100/1300~1600

Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V
